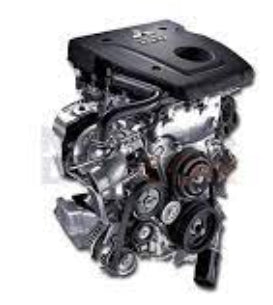

Service manual MITSUBISHI 4N14 - 4N15

Manual de Serviço e Retífica Motores Mitsubishi 4N14 / 4N15 – L200 Triton e Outlander

Specifications and Technical Content:

Covered Engines:

Mitsubishi 4N14: 2.2L Turbo Diesel Intercooler

Mitsubishi 4N15: 2.4L DOHC 16V MIVEC Turbo Diesel (New generation L200 Triton Pickups)

Detailed Content:

Block and Cylinder Head: Grinding procedures, ovality measurement, bearing clearances, angular tightening torque, and cylinder head sequence.

Timing and Distribution: Assembly and alignment of the timing chain, VGT/MIVEC camshaft, and balancers.

Injection System & Turbo: Common Rail system diagnosis, high-pressure pump, piezoelectric injectors, and variable geometry turbocharger (VGT).
